n-1 84HP x AI Synthesis

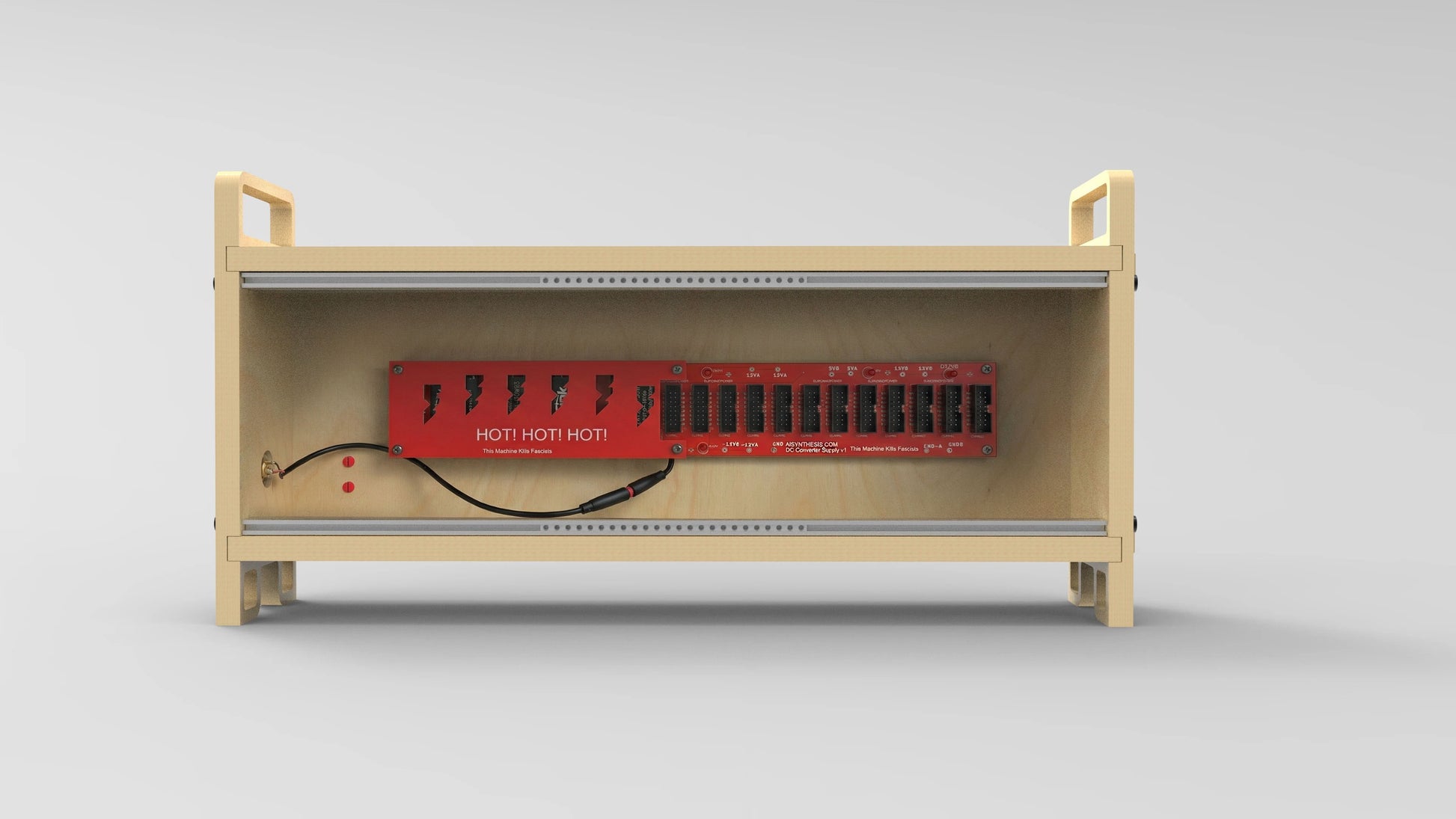

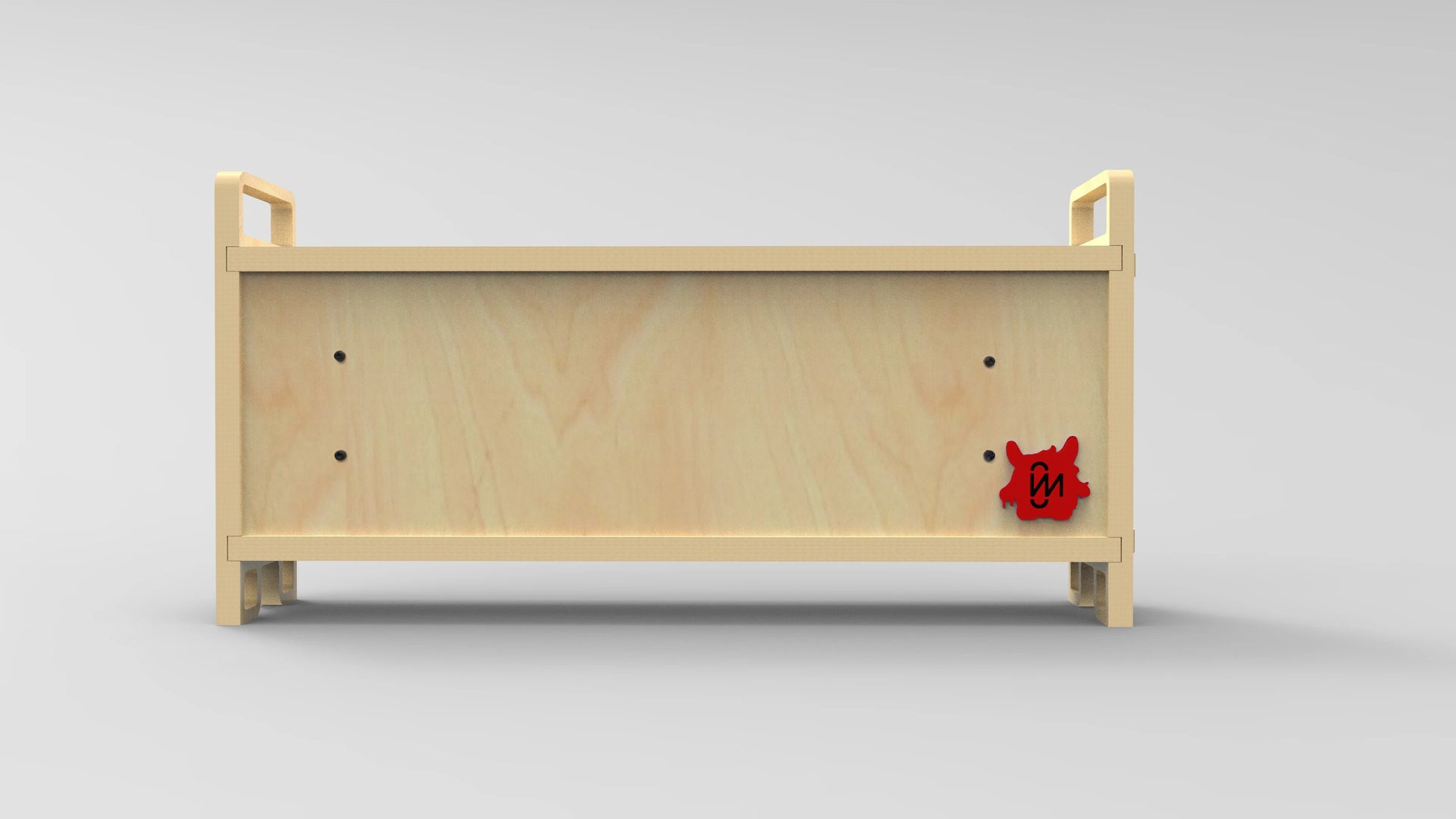

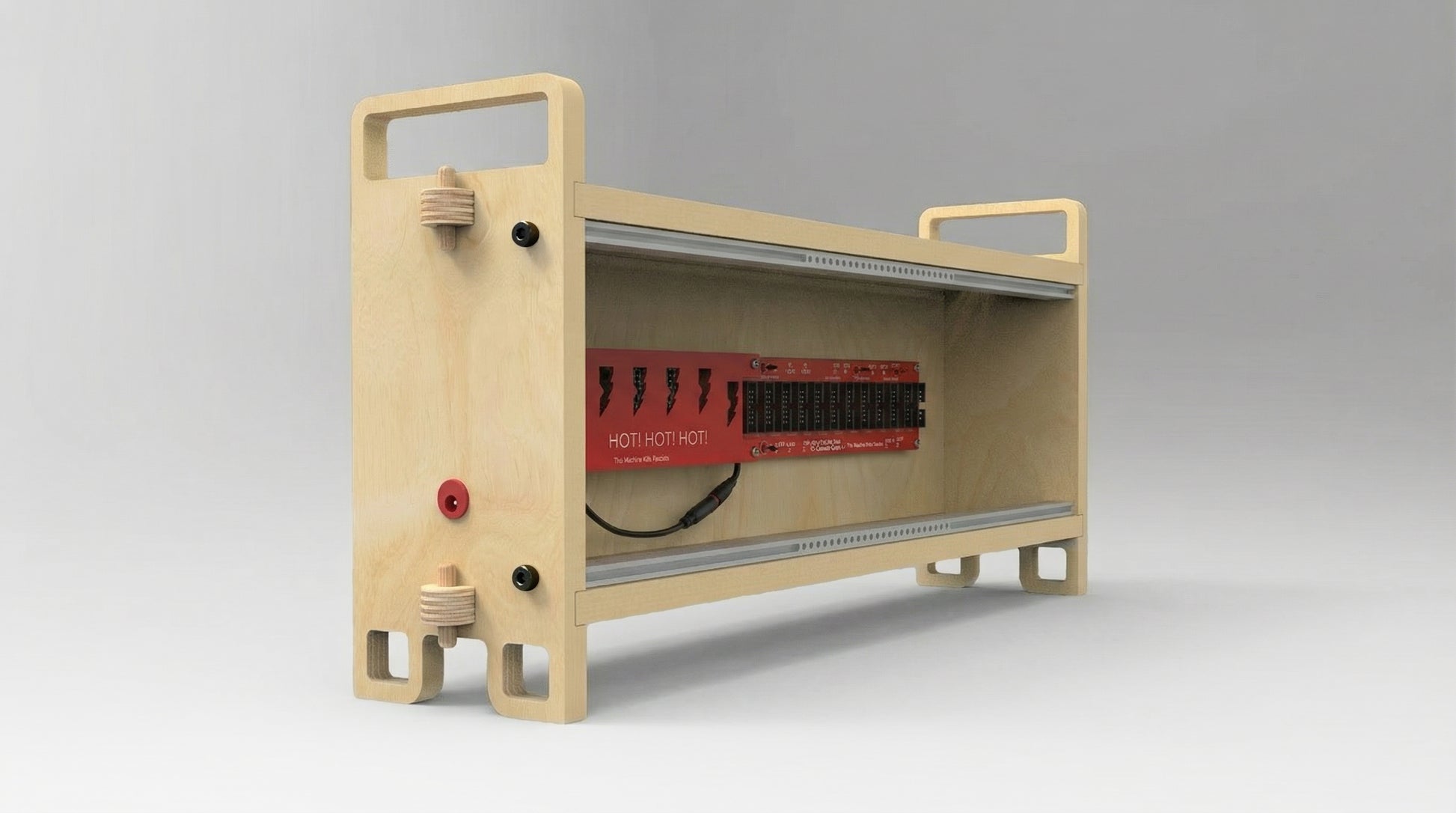

n-1 84HP Eurorack Modular Synth Case

The n-1 case is a great way to start a modular system: an affordable, DIY case solution ready to go with only a few minutes of assembly.

• Easy-to-assemble DIY Eurorack case solution
• Includes all parts needed to build a passive Euro enclosure
• Includes M3 threaded inserts

Powered by AI Synthesis

The AI Synthesis Eurorack High Power Supply is a low-noise solution for powering large, power hungry systems. The Power Supply supplies a total of 5 AMPs (5,000mA) of +12v power, 2.5 Amps (2,500mA) of -12V power, Ground, and 400mA of +5V power to your modules via 12 shrouded connectors, and multiple chain points to other distribution boards. Four LEDs indicate status of the four power rails, and the Power Brick is included. The Eurorack High Power Supply uses super quiet DC to DC converters to turn one powerful DC brick into four reliable, quiet, power rails:

• +12V A: 2.5 Amps
• +12V B: 2.5 Amps
• -12v: 2.5 Amps
• +5V: 400mA

Headers 1-6 Draw their +12V from +12VA, and Headers 7-12 draw their +12V from +12VB.
